750W / 850W / 1000W /1200W
THE “POWER” FOR DUAL CHAMBER CASES
The EDGE Gold PSU series features a unique L-shape design, a removable USB and fan PWM hub, longer modular cables, and a conveniently removable dust filter. Experience efficient cable management in a dual chamber or tower chassis that blends aesthetics and convenience in your PC build.
80 PLUS GOLD
CYBENETICS PLATINUM
(EG1000G / EG1200G)
CYBENETICS GOLD
(EG0750G / EG0850G)
L-SHAPE DESIGN
ATX 3.1
PCIE5.1
REMOVABLE
DUST FILTER
MODULAR
USB/PWM HUB
10 YEARS WARRANTY
AVAILABLE IN 2 COLORS AND 4 WATTAGES
Offering versatile options, the EDGE Gold PSU is available in multiple configurations with or without a USB hub to meet different power needs and match the components’ colors.

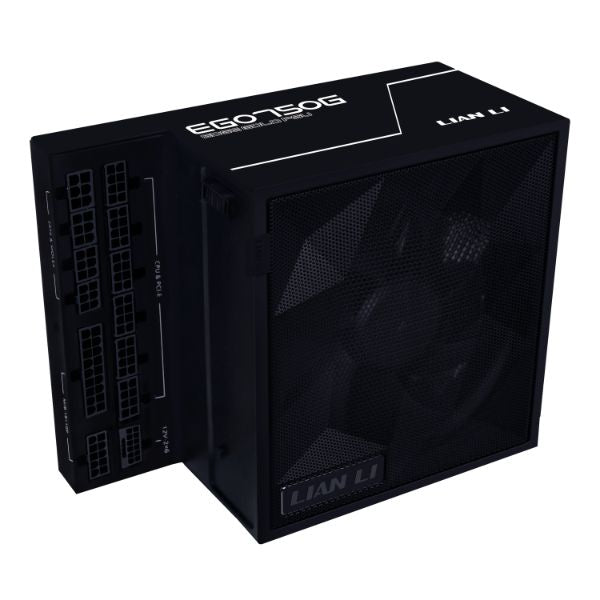

750W
Black
(USB hub not included)
850W
Black/ White
(USB hub not included)
1000W
Black/ White
1200W
Black/ White

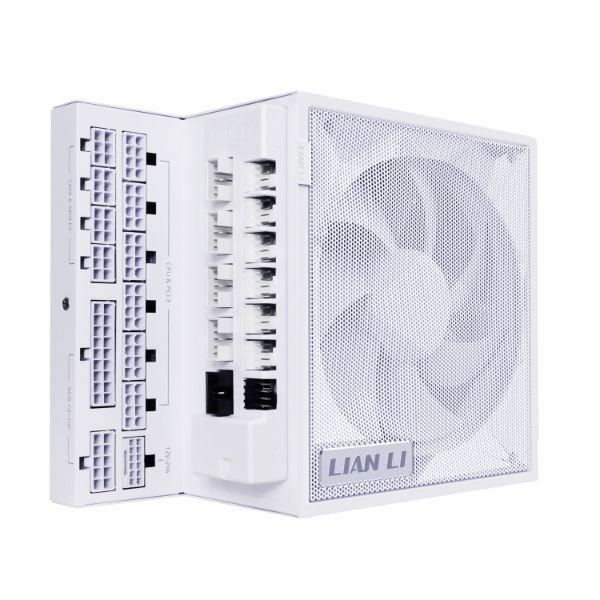

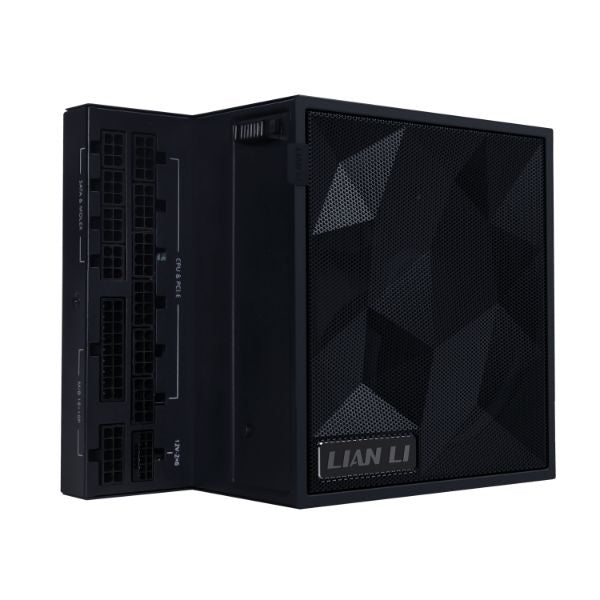

INNOVATIVE L-SHAPE DESIGN
Introducing the world’s first PSU with a detachable USB and PWM fan hub that also functions independently, and that features a removable magnetic dust filter. This unique form factor reorients the connectors outward, simplifying cable management and ensuring a clean, organized build.
MODULAR USB & FAN PWM HUB – EDGE HUB
The external USB and fan PWM hub module offers versatile connectivity options. It can be attached directly to the PSU or connected via a PCIe power interface inside the case.
Fan PWM Hub
6 extended 4-pin fan connectors, each rated at 2A, to meet the demands of multi-fan setups.
USB Hub
4 ports supporting up to 8 downstream connections, ideal for RGB controllers and USB devices, with a total output of 2.5A.
Edge PSU Connector
Remove the cap and attach the hub directly to the Edge PSU for power.
Magnetic Design
Integrated magnets allow easy placement and accessibility inside the case.
Independent Power Supply
Connect the hub to a PCIe 8-PIN cable for independent operation.
Connect Edge Hub to Edge Gold PSU
Place the hub inside the case
MOTHERBOARD SIGNAL CONNECTION
Sync fan speed by connecting the fan 3-PIN to 3-PIN cable.
Offers two options for motherboard USB signal connection to accommodate different configurations.
USB type-A
USB-USB

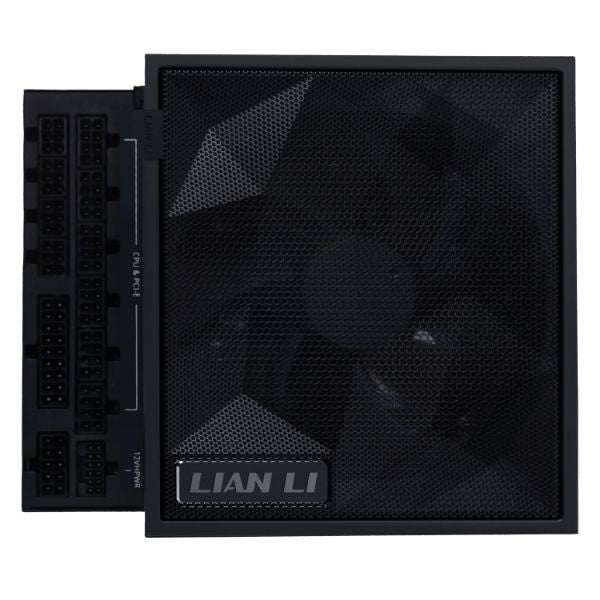

MAGNETIC DUST FILTER
The magnetic mesh dust filter on top of the fan can be easily removed for regular cleaning, ensuring dust-free operation. A high porosity of 66.9% ensures ample ventilation and airflow with quiet fan operation, extending the PSU’s lifespan and reliability.

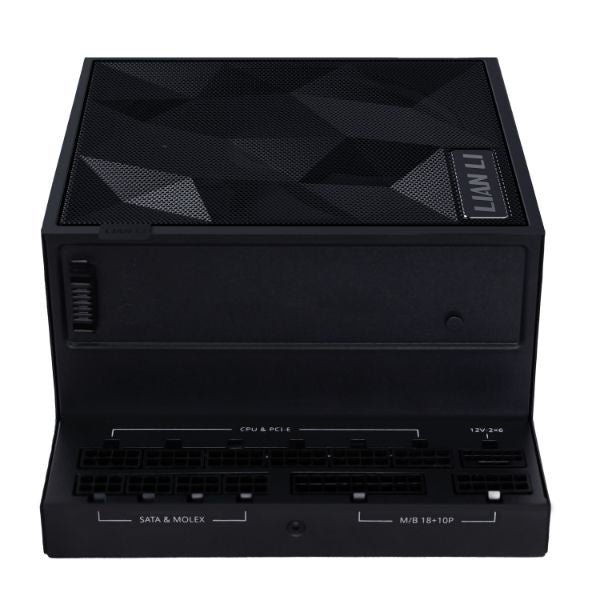

CONVENIENT CABLE MANAGEMENT
Engineered specifically for dual-chamber chassis such as the LIAN LI O11 series, the EDGE Gold PSU’s L-shape design is ideal for vertical installation in the second chamber. This outward-facing interface is more user-friendly than traditional side-mounted designs, making cable management simple and accessible for both beginners and experienced builders.
LONGER CABLE REACH FOR VERSATILE BUILDS
The Edge Gold PSU features new cables that are even longer, making it ideal for dual-chamber or regular tower chassis, enhancing flexibility and ensuring optimal cable management for all kinds of builds with ease.

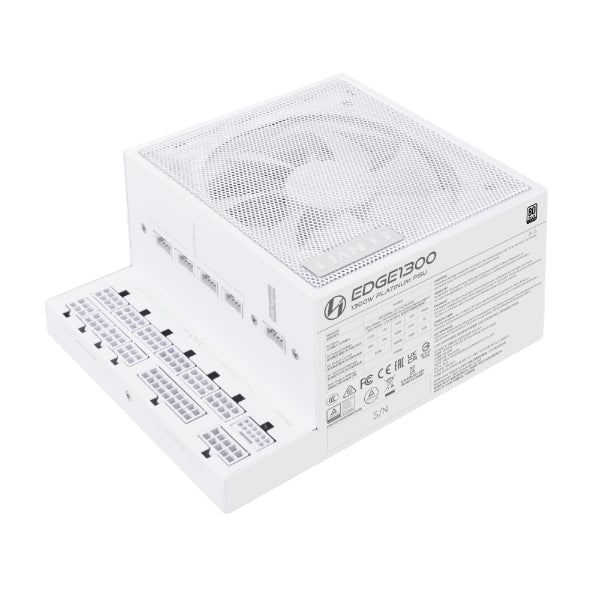

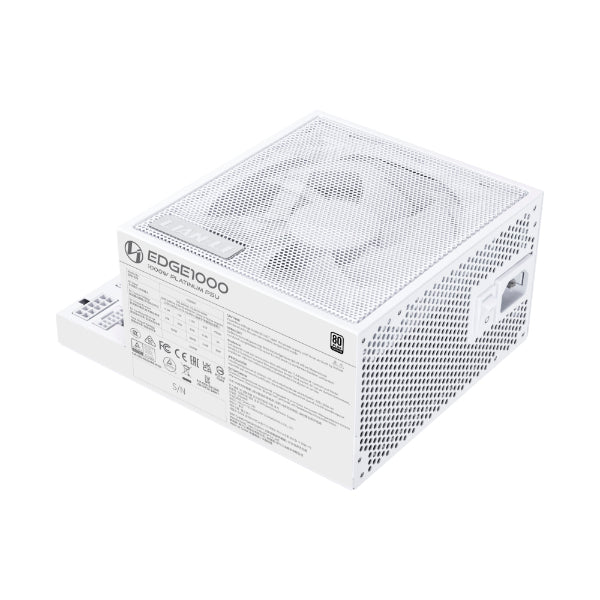

Edge Platinum PSU
Edge Gold PSU
Edge Platinum PSU features shorter cables for dual-chamber chassis, while Edge Gold PSU includes extended cables for regular tower chassis.
EFFICIENCY LEVEL CERTIFIED
Achieving the 80 PLUS Gold, Cybenetics Platinum and PPLP Gold certifications, the EDGE Series ensures top-tier energy efficiency, reducing power consumption and heat output while delivering reliable, stable performance.
|
|
|
EDGE GOLD 1200W Efficiency
COOL IN SILENCE
Designed for optimal performance, the open style mesh facilitates excellent heat dissipation for internal components. This feature is especially beneficial for the 120 MM PWM fan, which operates efficiently with minimal noise, ensuring the system stays cool and quiet even under heavy loads.
Edge Gold 1200W Fan Acoustic Noise
(Ambiance temperature 30℃)
Note: The fan features a fanless mode, remaining at zero RPM during low loads for quiet operation.
STABLE DUAL COLOR PCIE5.1 CONNECTOR
LIAN LI’s in-house R&D designed a high-quality 12V-2×6 dual-color connector featuring alloy copper soldered terminals for secure and efficient power delivery, enhancing system stability and performance.
Dual-color shell for confirming secure connections
Added gold plating to prevent short circuits
Soldered wire and terminal connection for current stability
Increased copper thickness to 0.25mm for lower contact resistance
The terminal maintain a contact resistance below 1.5mΩ after 50 plug/pull cycles, compared to ordinary terminals at 2-3mΩ, enhancing the connector’s performance and long-term reliability.
Included in the 1200W version, an extra dual 8-pin to 12V-2×6 cable is ready for the future power hunger dual connection GPUs.
BRAIDED-TEXTURE SLEEVED CABLES FOR A CLEAN BUILD
The PSU comes equipped with all cables featuring a braided texture. The 20+4pin, CPU, PCIe 6+2pin, and 12V-2×6 cables are designed with easy-to-adjust cable combs, ensuring very clean curves and cable runs for an aesthetically pleasing and organized dual chamber build.
Braided-texture cable with cable comb
Combined braided-texture cable
INDUSTRIAL GRADE CAPACITORS
The EDGE Gold PSU integrates the German EPCOS capacitors or same level Japanese capacitors, offering compact, robust performance with higher tolerances to harsh temperatures and environments.
COMPREHENSIVE CONNECTORS
The modular cables have a new longer design compared to the previous EDGE PSU, which ensures easy component reach and efficient cable management.
SUFFICIENT PROTECTION
Features OCP (Over Current Protection), OVP (Over Voltage Protection), SCP (Short Circuit Protection), OPP (Over Power Protection), UVP (Under Voltage Protection), OTP (Over Temperature Protection), SIP (Surge Intensity of election flow Protection), NLO (No Load Operation), and an Inrush Current Limiter that ensures the EDGE GOLD delivers continuously stable and reliable power.
10 YEAR WARRANTY
The EDGE Gold PSU series is crafted with high-quality materials for superior performance and longevity. Enjoy peace of mind with our extensive 10-year warranty for the power supply and 2-year warranty for the Edge Hub.
（Power Supply）
（Hub）
SPECIFICATIONS
| PRODUCT NAME | EDGE GOLD 750 | EDGE GOLD 850 | EDGE GOLD 1000 | EDGE GOLD 1200 |
|---|---|---|---|---|
| MODEL | EG0750G | EG0850G | EG1000G | EG1200G |
| DIMENSIONS | (D)182 mm X (W)86 mm X (H)150 mm | |||
| POWER SUPPLY DESIGN | Fully modular | |||
| COLOR | Black | Black/ White | ||
| MATERIAL | Steel | |||
| FORM FACTOR | ATX 3.1 | |||
| CERTIFICATION | 80 PLUS GOLD / Cybenetics GOLD / PPLP GOLD | |||
| MAX. DC OUTPUT | 750W | 850W | 1000W | 1200W |
| COMBINED +3.3V & +5V | 120W | 120W | 120W | 120W |
| COMBINED +12V | 744W | 849W | 996W | 1200W |
| INPUT VOLTAGE | 100-240Vac | 100-240Vac | 100-240Vac | 100-240Vac |
| INPUT FREQUENCY RANGE | 9-4.5A 50-60Hz | 10-5A 50-60Hz | 12-6A 50-60Hz | 15-7.5A 50-60Hz |
| PFC | Active PFC, PF > 0.90 under full load @ 115Vac, 60Hz | |||
| EFFICIENCY | 90.52%MAX | 90.71%MAX | 91.24%MAX | 91.64%MAX |
| PROTECTIVE CIRCUIT | OCP/OVP/OTP/OPP/SCP/UVP | |||
| CONNECTORS | 1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs |
1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8 pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU connector (750mm) x1pcs 1 x 6+2 Pin GPU connector (650mm+100mm) x1pcs 1 x SATA connector (300mm-15mm-15mm-15mm) x1pcs 1 x SATA-Y connector (375mm-150mm-150mm) x 1pcs 1 x SATA connector (400mm-150mm-150mm-150mm) x1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm-150mm) x1pcs 1 x 12V – 2X6 450W connector (650mm) x1pcs 2 x 6+2 Pin GPU connector (650mm) x2pcs |
1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 600W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
1 x 24/20-Pin motherboard connector (620mm) x1pcs 1 x 8/4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 4+4 Pin CPU/ATX 12V connector (750mm) x1pcs 1 x 6+2 Pin PCle connector (650mm + 100mm) x1pcs 4 x SATA connector (300mm-15mm-15mm-15mm) x 1pcs 4 x Y Type SATA connector (375mm-150mm-150mm-150mm) x1pcs 4 x SATA connector (400mm-150mm-150mm-150mm) x 1pcs 4 x 4-Pin Peripheral connector (500mm-150mm-150mm- 150mm) x1pcs 1 x 12V – 2X6 600W connector (650mm) x1pcs 1 x 12V – 2X6 -2*8 600W connector (650mm) x1pcs USB*9pin – USB*9pin connector (470mm) × 1pcs USB*9pin -Type A connector (550mm) × 1pcs |
| FAN TYPE | 120mm FDB Fan | |||
| FAN SPEED | 2000RPM | 2400RPM | ||
| FAN NOISE LEVEL | 30.9dBA | 39.3dBA | ||
