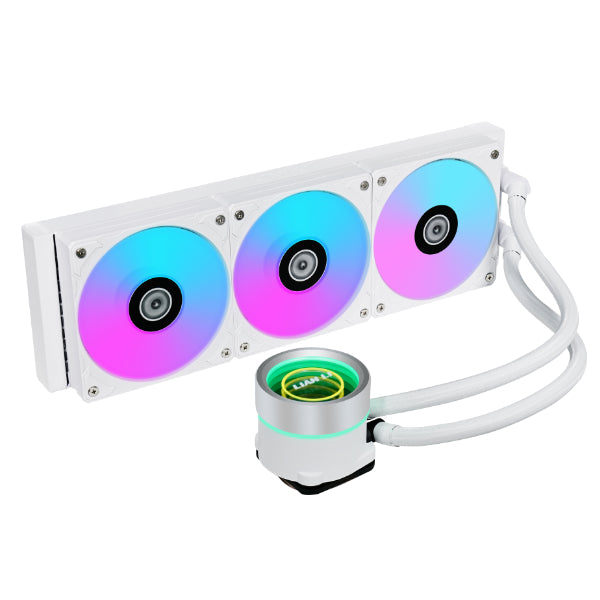

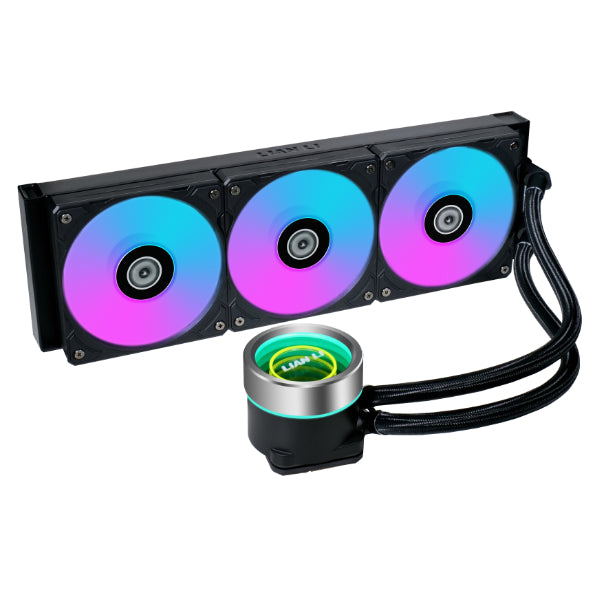

The Galahad II Trinity series comes with pre-installed fans on the radiator for your convenience. The RGB version is available with 2 kinds of fans:
Pushing air through the radiator effectively while maintaining the stunning looks of RGB fans.
360 Black / White
240 Black / White
Easily match the AIO fans to your case fans with this visually stunning option
360 Black / White
240 Black / White
Note:

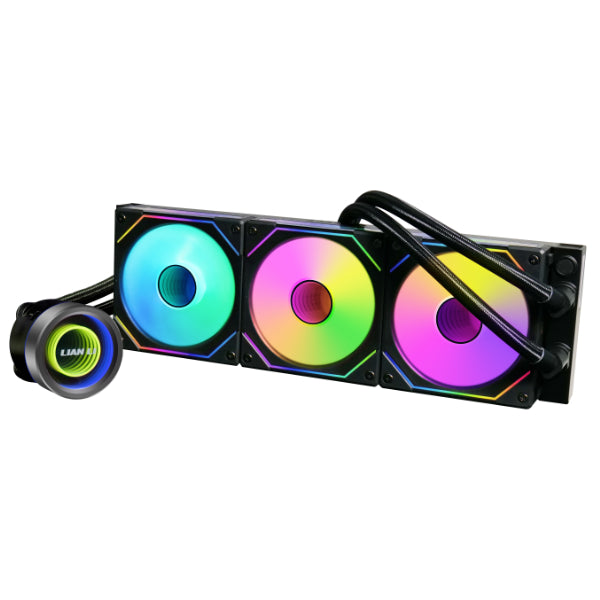

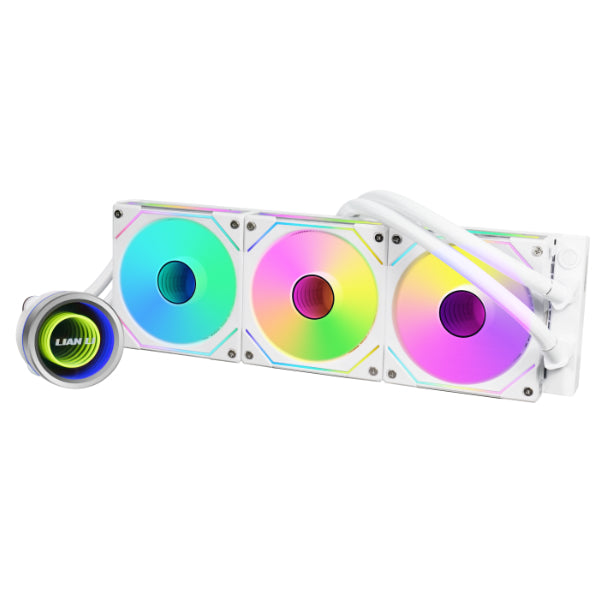

The UNI FAN SL-INF controller included in Galahad II Trinity SL-INF version allows expansion of UNI FAN SL-INF single pack (no triple pack) by using included 5V 3pin cables.
Compared to the Galahad AIO, the Galahad ll Trinity series shows significant improvement in cooling performance thanks to the many design changes that were introduced.
Coolant Pathway
To reduce waterflow Resistance
Copper Plate Fin Spacing
To prevent substance buildup over time.
Tube diameter
To increase waterflow for faster heat dissipation.
Pump motor speed goes up to 3200RPM
7 blade impeller for strong water flow
Copper plate seal with straightened coolant pathway, reducing resistance
Revised the fin thickness/ height/ distance for better diffusion of the coolant over the entire surface area of the copper plate.
The Galahad II Trinity series’ pump cap has three interchangeable designs, each with a unique look and two rings of colors that can be individually controlled with different lighting effects.
DUO- INFINITY
An aluminum housing cap with duo infinity mirror rings and a Lian Li logo at the center.
DAZZLE
An entirely shining pump cap that brings the most vivid lighting to your build.
SINK-HOLE
The combination of diffuser and infinity mirror creates the sinkhole effect.
This 27mm thick radiator features single-wave radiator fins with 20 FPI (fins per inch), which is less airflow restrictive and can result in greater thermal performance.
The ARGB PWM fans can be daisy-chained by a single short cable which can be hidden inside the frame of the fan. The 120mm fan is 25mm thick and is equipped with fluid dynamic bearings for stable and quiet operations while effectively providing airflow to the radiator.
Maximum Static Pressure
Maximum Airflow
This innovative 45° tubing connector gives the tubes the freedom of 360° rotation, allowing the Galahad ll Trinity series to be installed in many different ways.
The Galahad ll Trinity series can be flexibly installed in ways such as:
Top Mount
Side Mount
Front Mount
Note: Do not apply heavy pressure or strike on the connector.
To make things even better, it also comes with a leather strap to help with organizing the tubes.
The Galahad II Trinity series introduces redesigned mounting backplates to provide a hassle-free installation to users while maintaining compatibility with most mainstream CPU sockets. The backplates have a one-piece design with fixed struts to make installation easier.
It also comes with a thermal paste control film and spreader to help ensure the right amount of thermal paste is applied for effective heat dissipation.
Control and preview with precision the lighting effect and real time motor speed of the Galahad II Trinity Pump and fans with the L-Connect 3.
➊ Preview of pump header status and lighting effects
➋ Apply the fan and pump speed
➌ Set personalized lighting effects
Control connected ARGB device lighting effects
Set and monitor fan and pump speed with a real time curve
The controller is built in the pump and the fan can be connected to the pump to control via L-Connect 3.
ARGB and fan extension input cable
Connect an ARGB device or fan for control via L-Connect 3
5V ARGB
Required for motherboard sync
(No need to use if only using L-Connect)
SATA Cable
For power
USB Cable
Plug into a motherboard 9-pin USB header for L-Connect 3 support
4-PIN PWM Cable
Required for RPM control
Hardware compensation will be calculated with an annual depreciation rate of 15%:
● Year 1: 100% of hardware cost
● Year 2: 85% of hardware cost
● Year 3: 70% of hardware cost
● Year 4: 55% of hardware cost
● Year 5: 40% of hardware cost
● Year 6: 25% of hardware cost
| MODEL NAME | GA II Trinity 360 | GA II Trinity 240 | ||
|---|---|---|---|---|
| MODEL NO. | GA2T36B BLACK | GA2T36W WHITE | GA2T24B BLACK | GA2T24W WHITE |
| COLOR | Black | White | Black | White |
| TYPE | 360mm | 240mm | ||
| PUMP SPEED | 3200 RPM | |||
| RADIATOR FINS | Single wave | |||
| RADIATOR SIZE | 397.5mm x 119.2mm x 27mm | 277.5mm x 119.2mm x 27mm | ||
| PUMP SIZE | 74 mm x 74mm x 69mm | |||
| INCLUDED PUMP BLOCK CAPS | Dazzle Mode,Sink Hole, Duo-Infinity | |||
| TUBE LENGTH | 385mm | |||
| PUMP NOISE | 16.59 dBA | |||
| FAN SIZE | 120 x 120 x 25mm | |||
| FAN SPEED | 300~2450 RPM (Max.) | |||
| STATIC PRESSURE | 3.26 mmH2O (Max.) | |||
| AIRFLOW | 79.9 CFM (Max.) | |||
| ACOUSTIC NOISE | 30 dB(A) | |||
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||
| COMPATIBLE CPU SOCKETS | Intel: LGA 1851 / 1700 / 1200 / 115x AMD: AM5 / AM4 |
|||
| WARRANTY | 6 years | |||
| MODEL NAME | GA II Trinity SL-INF 360 | GA II Trinity SL-INF 240 | ||
|---|---|---|---|---|
| MODEL NO. | GA2T36INB BLACK | GA2T36INW WHITE | GA2T24INB BLACK | GA2T24INW WHITE |
| COLOR | Black | White | Black | White |
| TYPE | 360mm | 240mm | ||
| PUMP SPEED | 3200 RPM | |||
| RADIATOR FINS | Single wave | |||
| RADIATOR SIZE | 397.5mm x 119.2mm x 27mm | 277.5mm x 119.2mm x 27mm | ||
| PUMP SIZE | 74mm x 74mm x 69mm | |||
| INCLUDED PUMP BLOCK CAPS | Dazzle Mode, Sink Hole, Duo-Infinity | |||
| TUBE LENGTH | 385mm | |||
| PUMP NOISE | 16.59 dBA | |||
| FAN SIZE | 120mm x 120mm x 25mm | |||
| FAN SPEED | 2100 RPM (Max.) | |||
| STATIC PRESSURE | 2.66mmH2O (Max.) | |||
| AIRFLOW | 61.3CFM (Max.) | |||
| ACOUSTIC NOISE | 29 dB(A) | |||
| BEARING TYPE | Fluid Dynamic Bearing (FDB) | |||
| COMPATIBLE CPU SOCKETS | Intel: LGA 1851 / 1700 / 1200 / 115x AMD: AM5 / AM4 |
|||
